| Business Type | Manufacturer, Exporter |
| Country of Origin | India |
| Current Rating | 100A, 200A, 250A, 300A, 400A, 500A, 600A |
| Maximum Current | Up to 200% |
| Click to view more | |
Product Details
Operating Temperature
-25°C to +85°C
Bandwidth
DC to 50KHz
Supply
±12V DC to ±15V DC
Output Signal at Rated Current
±4V
Linearity
≤ 1%
Temperature Stability
≤ 350ppm/°C
Connection Options
Plug-in connectors
Notes
- Other configurations on request
- RoHS 3 compliance is available on most products, subject to our confirmation.
- Specifications subject to change without notice.
- General Tolerance: ± 1.0mm.

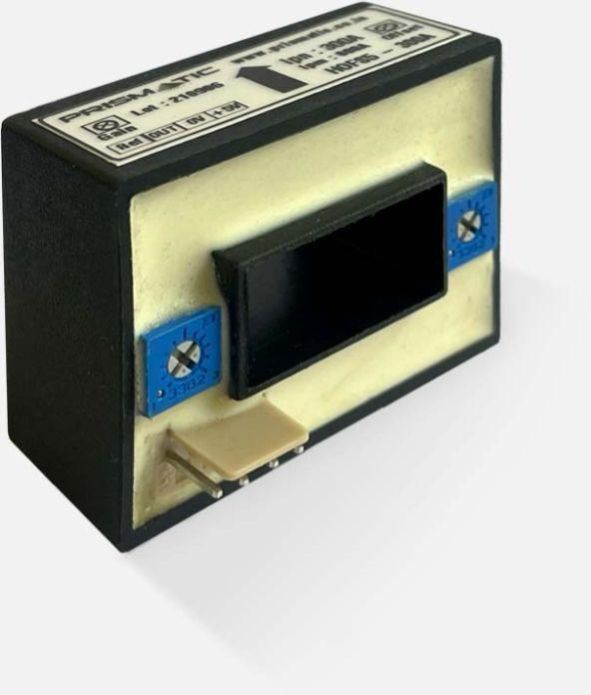

Looking for "Open Loop Dual Supply Hall Effect Current Transformers" ?
